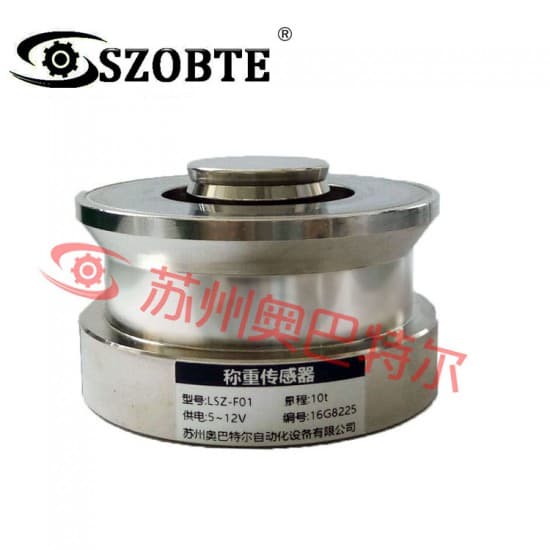

点击图片查看原图
产品特点 | Feature
stainless steel
Full seal, laser welding
Higher overload protection
Suitable for use in limited space
优质合金钢材质
全密封，激光焊接
更高的过载保护能力
适用于空间有限的场合使用
量程 | Capacities
1t,2.2t,3.3t,4.7t,10t,15t,22t,33t,47t,100t,150t,220t,330t,470t
客户可以根据自己需求定制量程。
技术参数 | Specification
|
Rated Output |
额定输出 |
2.85mv/v±1% |
|
Zero Balance |
零点平衡 |
±1% of rated output |
|
Creep After 30 Minutes |
蠕变 |
±0.03% of rated output |
|
Nonlinearity |
非线性 |
±0.03% of rated output |
|
Hysteresis |
滞后 |
±0.03% of rated output |
|
Repeatability |
重复性 |
±0.03% of rated output |
|
Temp. effect on output |
灵敏度温漂 |
≤0.002% of applied output/℃ |
|
Temp. Effect on zero |
零点温漂 |
≤0.002% of rated output/℃ |
|
Safe temp. Range |
可用温度范围 |
-20℃ to+70℃ |
|
Temp.Compensated |
温度补偿范围 |
-10℃ to+40℃ |
|
Safe Overload |
安全载荷 |
150% |
|
Input Impedance |
输入阻抗 |
1453Ω±10Ω |
|
Output Impedance |
输出阻抗 |
1402 Ω±5Ω |
|
Insulation Resistance |
绝缘阻抗 |
≥5000MΩ(50V DC) |
|
Rated Excitation |
推荐激励电压 |
10V DC/AC |
|
type |
型号说明 |
型号+‚量程+ƒ非标功能F(无非标则不需填写) 如：LSZ-F03A/50kg |
|
Cable Color Code |
导线颜色 |
Red(+E)Black(-E)Green(+S)White(-S) |
